Simple Steps to Configure CKEditor in TYPO3

Gone are the days when the ever-increasing TYPO3 Community relied on the usage of Rich Text Editor (RTE) and its now-obsolete features.

Simple Steps to Configure CKEditor in TYPO3

With the launch of TYPO3 8 LTS, TYPO3 developers and editors have been introduced to more effective backend editing solutions such as those presented by CKEditor.

You have to migrate to rte_ckeditor when updating/upgrading TYPO3 from previous TYPO3 versions (=< v8).

Download Now: Free TYPO3 Update/Upgrade Kit

Here we help you take a quick look at the primary configuration levels of CKEditor in TYPO3 CMS.

What is CKEditor?

CKEditor is a WYSIWYG RTE that permits the direct addition of JavaScript based codes within online applications or web pages. It can be procured under commercial and open source licenses.

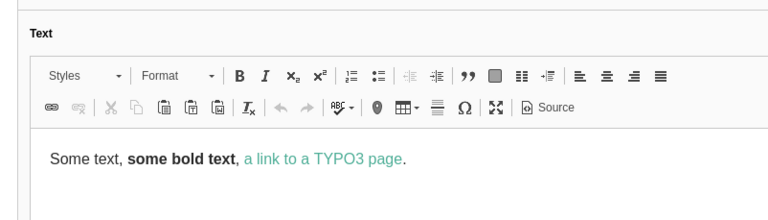

CKEditor Versus TYPO3’s htmlArea RTE

In most cases, RTEs offer text areas wherein you can manipulate and format content, apply styles and create files as per your needs. With TYPO3 Version 8.6, you can configure RTE via YAML files in the simplest of ways.

Source: https://docs.typo3.org/c/typo3/cms-rte-ckeditor/main/en-us/Introduction/Index.html

Why use CKEditor in TYPO3?

  • Smartly-designed inline editing features
  • Compatibility with cross browsers and cross devices
  • Compliance with upgraded web accessibility features and standards
  • Advance levels of content filtering are possible, etc.

YAML - The Configuration File Format

As CKEditor comprises of YAML configuration, it is essential to gain preliminary knowledge about YAML files. These files are basically text files with easy-to-comprehend syntax. The structuring of these files is dependent on the placement of indentations and spaces; e.g. sequence items are denoted by dashes while key-value pairs are disjointed by a colon.

YAML Sample Code



# Employee records
-  sanjay:
    name: Sanjay Chauhan
    job: Developer
    skills:
      - php
      - python
      - c
-  keval:
    name: Keval Pandya
    job: Developer
    skills:
      - php
      - c++
      - python

Default Presets in TYPO3’s CKEditor

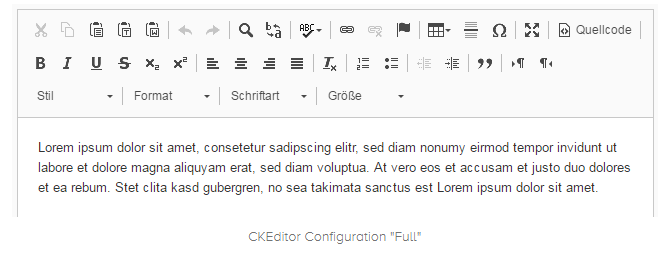

1. Full preset

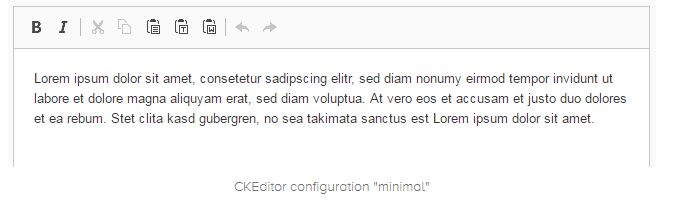

2. Minimal preset

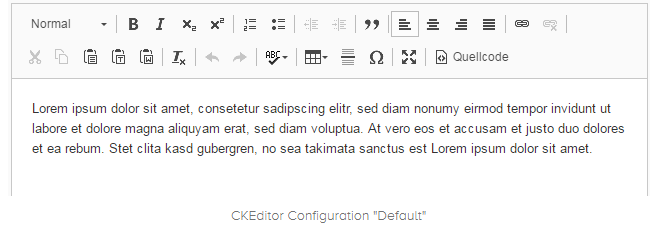

3. Default preset

What do these presets do?

The presets are responsible for defining the appearance of the editor, the styles and tags permissible therein, and the loading/ unloading of plugins. They also lay down the features and functionality of the database processing system ‘RTE.proc’.

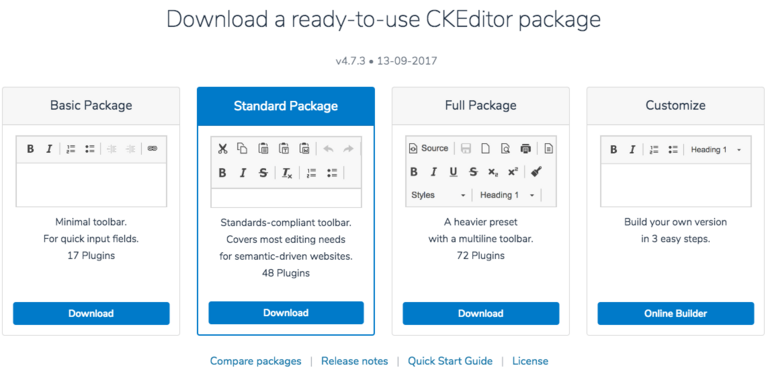

Can you Configure CKEditor Preset in TYPO3?

Yes, the presets in CKEditor can be configured to work with TYPO3 core and TYPO3 extensions alike.

Source: https://docs.ckeditor.com/ckeditor4/latest/guide/dev_installation.html

1. Overridden of default preset configuration



RTE.default.preset = default
# or
RTE.default.preset = full
# or
RTE.default.preset = minimal



2. Textmedia Element



RTE.tt_content.types.textmedia.bodytext.preset = minimal



3. News Extension Field



RTE.config.tx_news_domain_model_news.bodytext.preset = default

Custom Configuration Preset for TYPO3 CKEditor

Your website is unique in itself. Here are some quick steps to create personalized presets for CKEditor.

Source: https://ckeditor.com/latest/samples/toolbarconfigurator/index.html#basic

Step 1: Define YAML

  • View the standard configurations of your YAML files by typing the designated path. typo3/sysext/rte_ckeditor/Configuration/RTE
  • Register a new configuration at ext localconf.php of your own extension.
  • Assign your CKEditor configuration as per the requirements of the present selected for the configuration of CKEditor.

Step 2: YAML Setup for your Extension

  • Register you RTE configuration in ext_localconf.php

     $GLOBALS['TYPO3_CONF_VARS']['RTE']['Presets']['Custom_presets'] = 'EXT:site_default/Configuration/PageTSconfig/TceForm/Default.yaml';

Step 3: Assign your preset to default CKEditor

  • Assign your configuration in the designated preset.

     RTE.default.preset = Custom_presets

Structure of a RTE YAML preset file

The YAML configuration format for CKEditor in TYPO3 comprises of three sections.

  • Processing.yaml contains instructions for code processing for writing to the database.
  • Base.yaml refers to the basic default settings of the appearance / display of the RTE and ways to modify the same.
  • Plugins.yaml allows for new options to be added to the configuration.
# Load default processing options
imports:
- { resource: "EXT:site_default/Configuration/PageTSconfig/TceForm/Processing.yaml"}
- { resource: "EXT:site_default/Configuration/PageTSconfig/TceForm/Base.yaml" }
- { resource: "EXT:rte_ckeditor/Configuration/RTE/Editor/Plugins.yaml" }

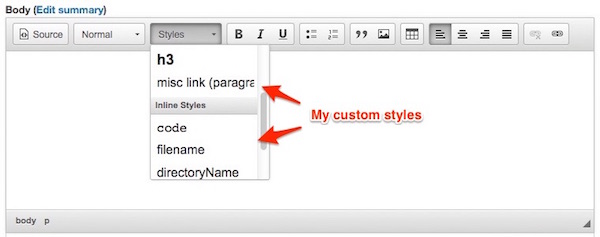

Managing Various Options of CKEditor in TYPO3

1. Format the HTML Tags:

Format the HTML tags by selecting the desired option from a dropdown menu.



editor:
  config:
  	format_tags: "p;h1;h2;h3;h4;h5;pre;address;div"

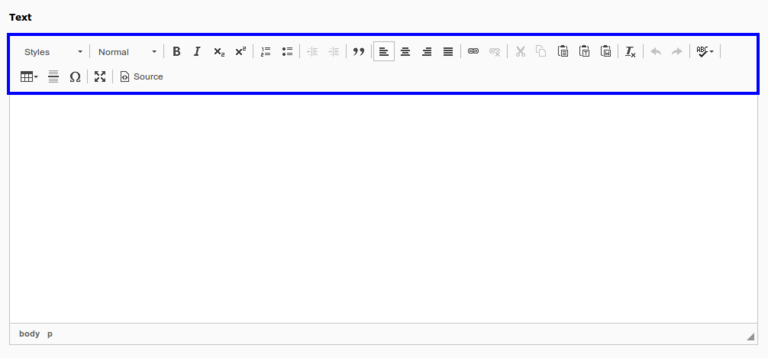

2. The Toolbar Groups

The Toolbar Groups option will help you define the layout and structure of toolbars on the top portion of the editor.



editor:
   config:
 	toolbarGroups:
     	- { name: clipboard, groups: [clipboard, undo] }
     	- "/"
     	- { name: styles }

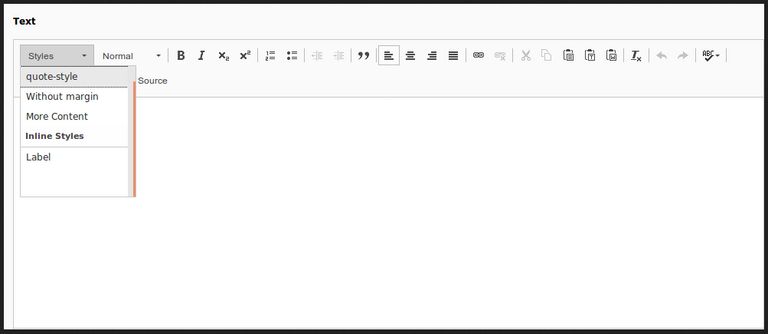

3. Providing styles

Provide different styles to format and customize text in an appealing manner. You may want to use the “Styles” drop down menu to go about the task.



editor:
  config:
     stylesSet:
  	- { name: "quote-style", element: "p", attributes: { class: "quote-style"}}
  	- { name: "Load More Button", element: "a", attributes: { class: "load-more"}}
  	- { name: "More Content", element: "div", attributes: { class: "more-content"}}

4. Configuring Plugins

Enhance the extensibility of CKEditor with over 200 plugins that can be accessed via the plugin directory. A simple code can be included in CKEditor for incorporating non-default plugins via a designated layout extension.



editor:
  config:
    allowTags:
      - address
      - label

    allowTagsOutside:
      - address
      - label

    justifyClasses:
      - text-left
      - text-center
      - text-right
      - text-justify
      - quote-style

    extraPlugins:
      - justify

    removePlugins:
      - image

    removeButtons:
      - Anchor
      - Underline
      - Strike

5. contentsCss

The ContentsCSS feature allows you to define various CSS styles for direct usage and viewing in CKEditor.

6. removeButtons

RemoveButtons helps in the removal of individual functions and buttons that result due to the importing of Base.yaml.

Default YAML by the TYPO3 Core

# Load default processing options
imports:
    - { resource: "EXT:rte_ckeditor/Configuration/RTE/Processing.yaml" }
    - { resource: "EXT:rte_ckeditor/Configuration/RTE/Editor/Base.yaml" }
    - { resource: "EXT:rte_ckeditor/Configuration/RTE/Editor/Plugins.yaml" }
# Add configuration for the editor
# For complete documentation see docs.ckeditor.com
editor:
  config:
    format_tags: "p;h1;h2;h3;h4;h5;pre"
    toolbarGroups:
      - { name: styles, groups: [ styles, format ] }
      - { name: basicstyles, groups: [ basicstyles ] }
      - { name: paragraph, groups: [ list, indent, blocks, align ] }
      - { name: links, groups: [ links ] }
      - { name: clipboard, groups: [ clipboard, cleanup, undo ] }
      - { name: editing, groups: [ spellchecker ] }
      - { name: insert, groups: [ insert ] }
      - { name: tools, groups: [ table, specialchar ] }
      - { name: document, groups: [ mode ] }
    justifyClasses:
      - text-left
      - text-center
      - text-right
      - text-justify
    extraPlugins:
      - justify
    removePlugins:
      - image
    removeButtons:
      - Anchor
      - Underline
      - Strike
      - Styles

Migration of your HTMLArea to CKEditor?

When you wish to convert the HTML code present in the HTMLArea of RTE to the database of CKEditor, the Upgrade Wizard of TYPO3 comes into play during the upgrading process. In order to save data loss, it is essential to configure the CKEditor as per the existing settings of your RTE’s HTMLArea. It is equally important to open and save the RTE-text in the backend with utmost care.

pageTS



RTE.default {
  showButtons(
    bold, italic, underline,
    left, center, right, justifyfull,
    orderedlist, unorderedlist, indent, outdent,
         line, link, removeformat,
    copy, cut, paste, undo, redo
  )
  toolbarOrder(
    bold, italic, underline, bar,
    left, center, right, justifyfull,
    orderedlist, unorderedlist, bar, indent, outdent, linebreak,
         line, link, removeformat, bar,
    copy, cut, paste, bar, undo, redo
  )
}



yaml



editor:
  config:
    toolbar:
      - [ 'Bold', 'Italic', 'Underline', '-' ]
      - [ 'JustifyLeft', 'JustifyCenter', 'JustifyRight', 'JustifyBlock' ]
      - [ 'NumberdList', 'BulletedList', '-', 'Indent', 'Outdent' ]
      - '/'
      - [ 'HorizontalRule', 'Link', 'RemoveFormat', '-' ]
      - [ 'Copy', 'Cut', 'Paste', '-' , 'Undo', 'Redo']
    extraPlugins:
      - justify



Advanced Content Filter

  • The configured tags, classes and styles are retained.
  • It is possible to filter content during the processes of edits and pastes.
  • The advanced features of the content filter are enabled by default.
editor:
  config:
     allowedContent: true



TYPO3 + CKEditor Video

Tutorial - Rich Text Editor

Conclusion

The integration of CKEditor with TYPO3 has revolutionized the way in which backend content editing can be carried out by developers, editors and end users. Go ahead and enjoy the many benefits of configuring your TYPO3 RTE with CKEditor and notice the difference - right away.

If you need help with your TYPO3 development, feel free to contact us here.

We would love to receive your thoughts and feedback about this blog; do write to us!
